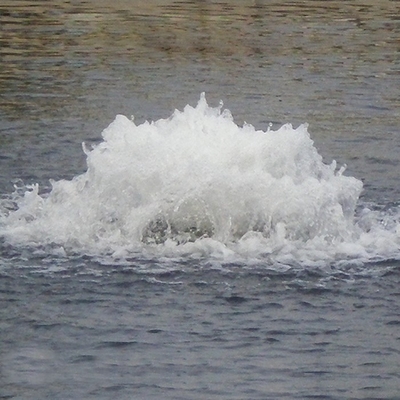

Introduce more oxygen faster with 8400AF & 2.3AF Surface Aerators. The high-performance design of these aerators uses a single open propeller to create and push water droplets into the air allowing efficient transfer of oxygen to the water. Agitation and movement created by the process spreads the oxygenated water throughout the body of water. These units can operate in as little as 20 inches (.6M) of water. 8400AF & 2.3AF Surface Aerators are ideal for ponds/tanks with surface areas of about 2 acre.
- High-efficiency design means low power compensation and low operating costs
- Heavy-duty motor and corrosion resistant design; suitable for salt-water or other corrosive environments
- Safety Tested: ETL listed to UL and CSA Standards, 50Hz models CE marked
- An easily replaced protective sacrificial zinc anode included with each unit
- Low maintenance and dependable design
- Multiple cord lengths available (see charts below); all SJTOW underwater rated (50 Hz models are available only with 10M or stub power cords)
- Ships via FedEx
- 3 year warranty (2 year for 50Hz models)
All units come with a float and three 50 ft. (15m) mooring lines. Optional bottom screens and/or control panels are also available.
8400AF 2HP Surface Aerator —240V Single Phase, 60Hz
Part Number | Cord Length | Voltage | Phase | Controller | Bottom Screen | Minimum Depth | Amps | Number of Boxes |
8400AF050 | 50 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 2 |
8400AF100 | 100 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 3 |
8400AF150 | 150 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 3 |
8400AF200 | 200 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 3 |
8400AF250 | 250 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 3 |
8400AF300 | 300 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 3 |
8400AF400 | 400 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 3 |
8400AF500 | 500 ft. | 208-240 | 1 | Optional - C85 | Optional | 20 in. | 9 | 3 |
